Landscape lighting 48V LED

1. The product is powered by DC48V voltage, with a single head supplying 200leds without voltage drop and uniform brightness.
2. Double packaging molding, innovative and fashionable design, closely following customer needs and feelings, incorporating more
technological elements and humanized design.
3. Unique appearance design, multiple installation methods, quick and convenient installation.
4. Using DMX512 signal, the presence of faulty lights does not affect the overall signal.
5. The signal transmission distance is long, and it can transmit up to 200 meters without an amplifier.
6. S-AI anti-interference patented technology can significantly reduce and filter out radiated and conducted interference.
7. The S-Drive drive technology and enhanced reception technology greatly increase the distance between point-to-point connections.
8. The fire rating has reached V0 level.
9. The glue is made of customized PU glue and added with heat dissipation powder, greatly reducing heat loss and effectively reducing the
speed of light decay.
10. The male and female heads adopt customized reinforced joints, which have better waterproof performance and more stable electrical
transmission.

product details

Product model :CY-PC42RGBWDMX
Waterproof grade :IP68

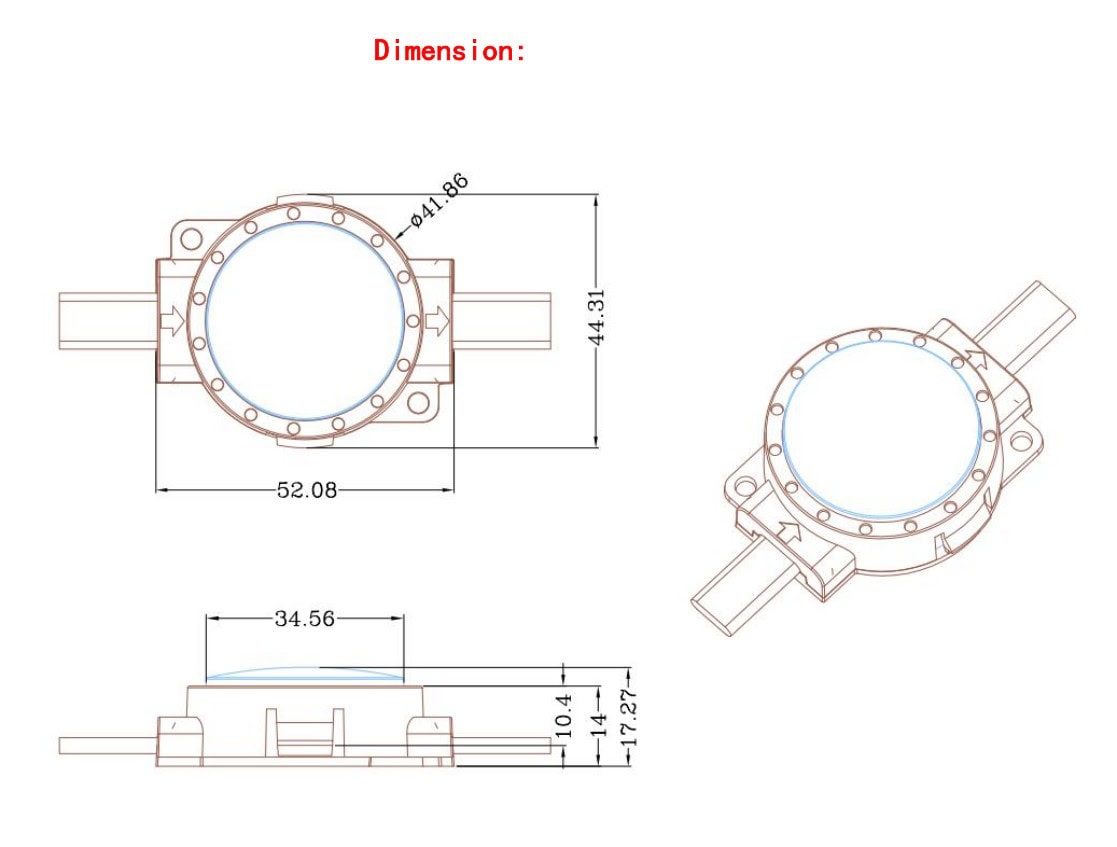

Product size :Φ 41.86mm*H14mm
Flame retardancy: V-0
application :Indoor and outdoor
UV resistance :level 4
single weight :About 14g
Salt spray test: Salt spray resistance
Shell material :PC
material Impact :resistance IK10
Maximum number: 200PCS/string
Electrical safety level :Class III
Center distance: Minimum 6CM
Security certification :CE FCC RoHS
Average lifespan :50000 hours
working temperature :-40℃-55℃
Optional Accessories :Aluminum profile (hole Φ35mm size)
Wire core :2×0.75²+3×0.3²
Wire material: PVC, Cold resistant
