DC24V/48V 40mm RGBW LED Permanent Christmas Light
P/N : H40DPW

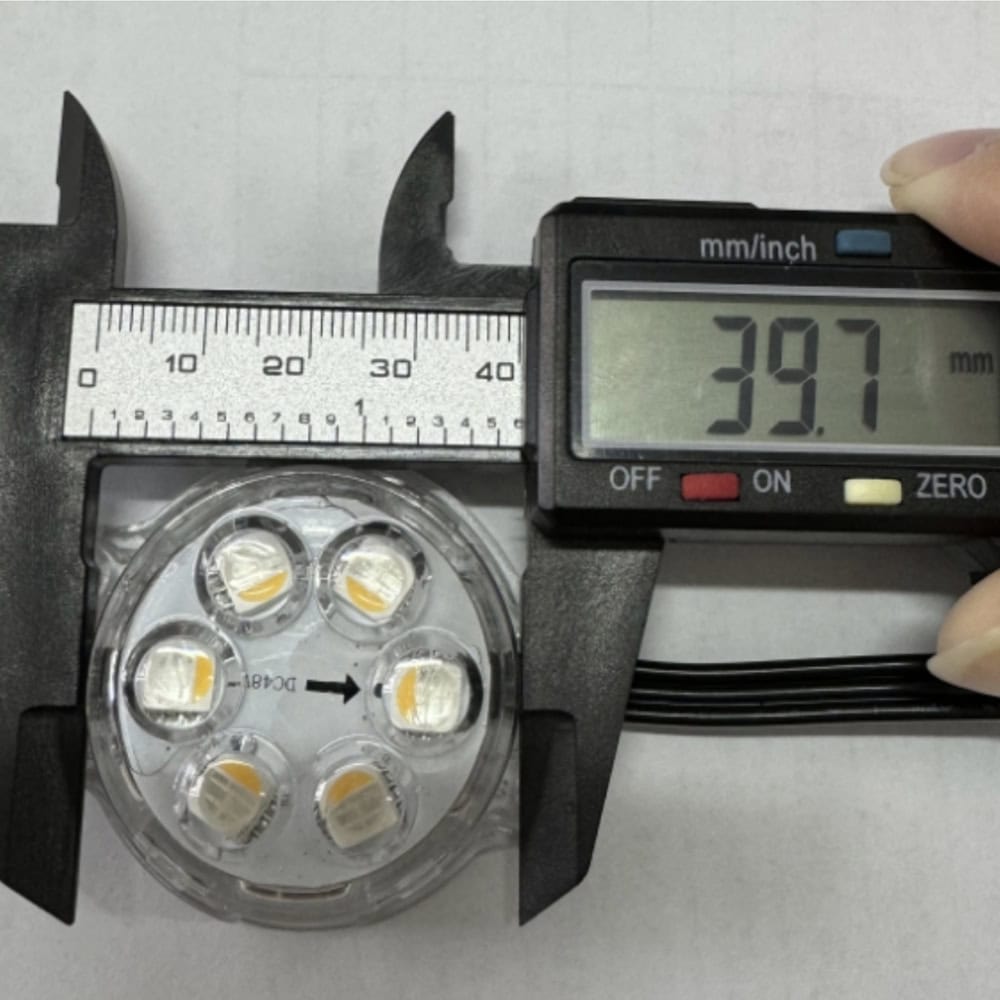

40MM diameter
6pcs smd5050 RGBW LED Lights
UCS2904 /TM1814 IC chip
DC24V or 48V voltage working
1.92W per bulb light
5pcs per chain , or customized .
WIFI / BT APP controller / sd card controller and etc .

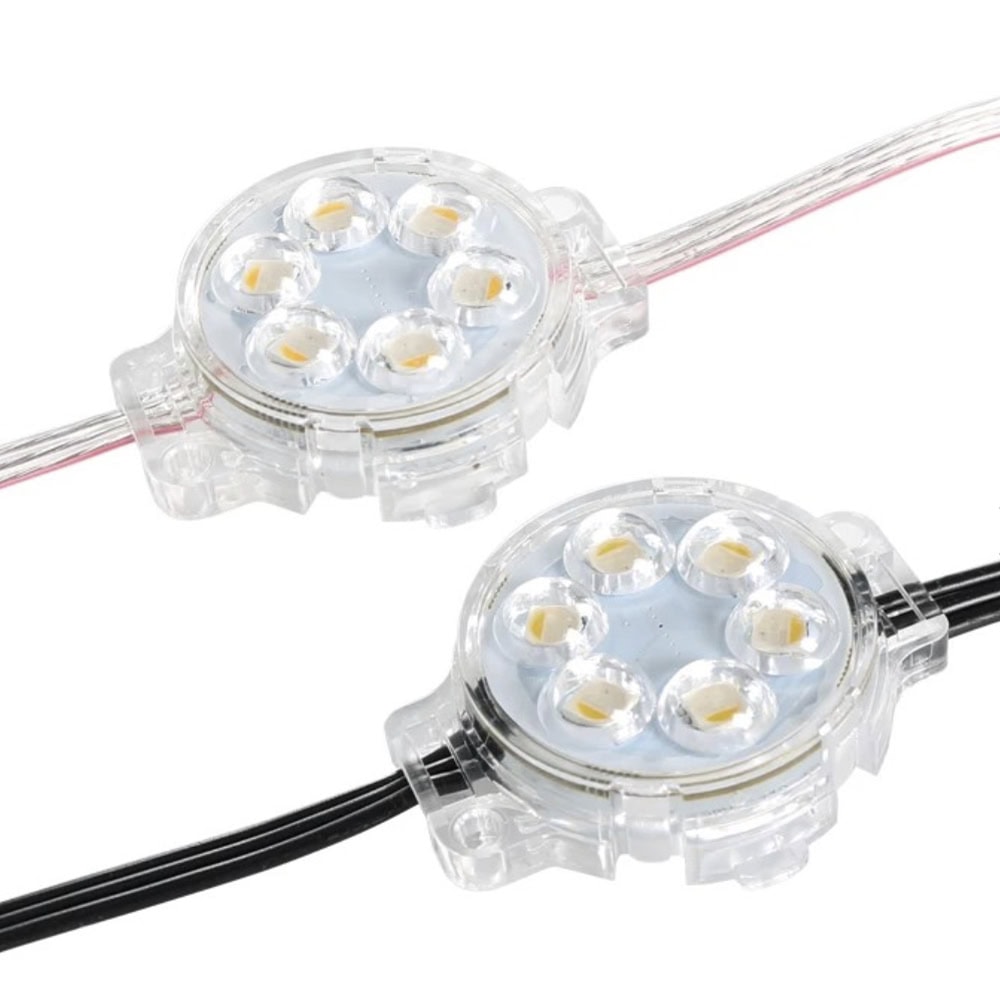

Each bulb/ pixel contains 6pcs smd5050 RGBW LEDs along with a dedicated UCS2904 control chip.
All of the LEDs are controlled at once so you cannot have one bulb/ pixel with the six LEDs different colors. (Color control is per single dot 6-LED pixel only) .
The outside shell can be lens / flat transparent / dome transparent types .
We have DC24V and DC48V voltage optional to meet kinds of length requirements .
It can be installed by screws , as well as by aluminum track / trim – track color can be customized .
| Voltage | DC24V | DC48V |
| Wattage | 1.92W | 1.92W |
| IP Rate | IP67 | IP67 |
| IC chip | UCS2904/TM1814 | UCS2904/TM1814 |
| LEDs qty/bulb | 6pcs SMD5050 RGBW | 6pcs SMD5050 RGBW |
| Diameter | 40mm | 40mm |
| Color | RGB full color controllable | RGB full color controllable |
| Wire length | Customized | Customized |
