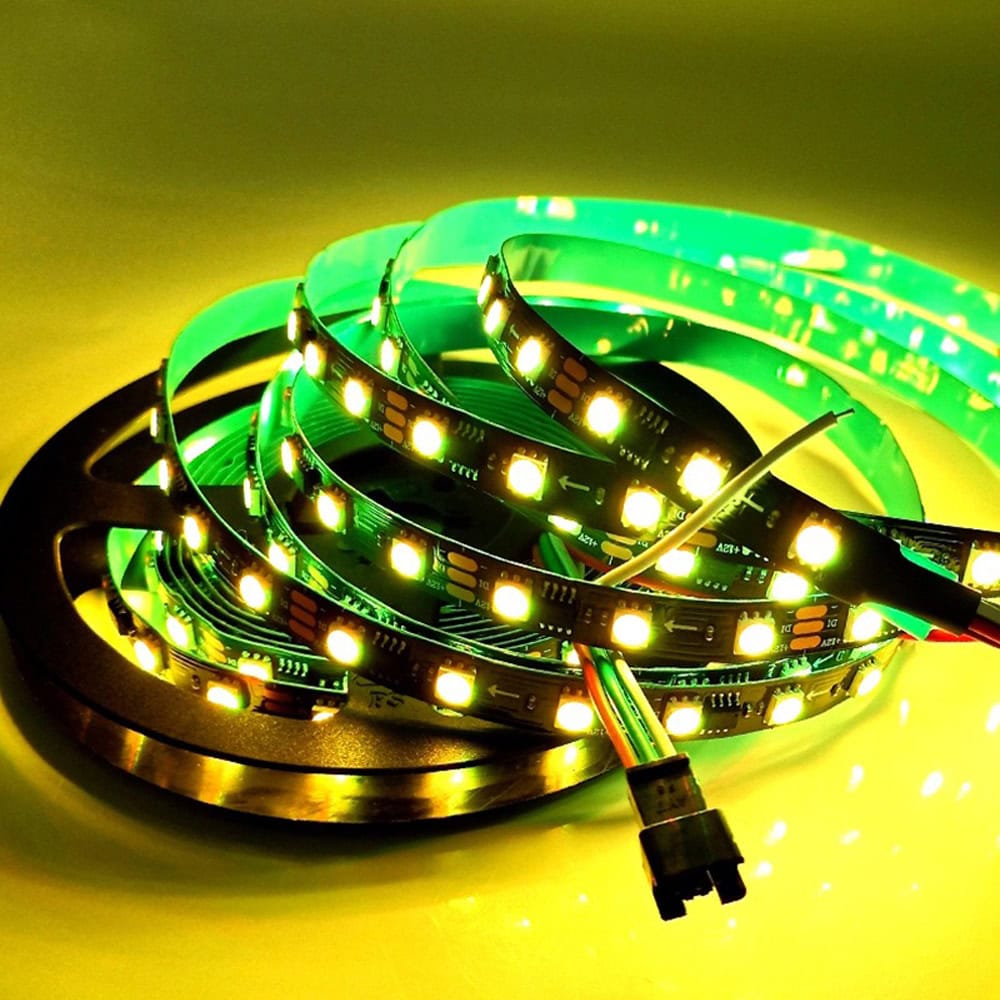

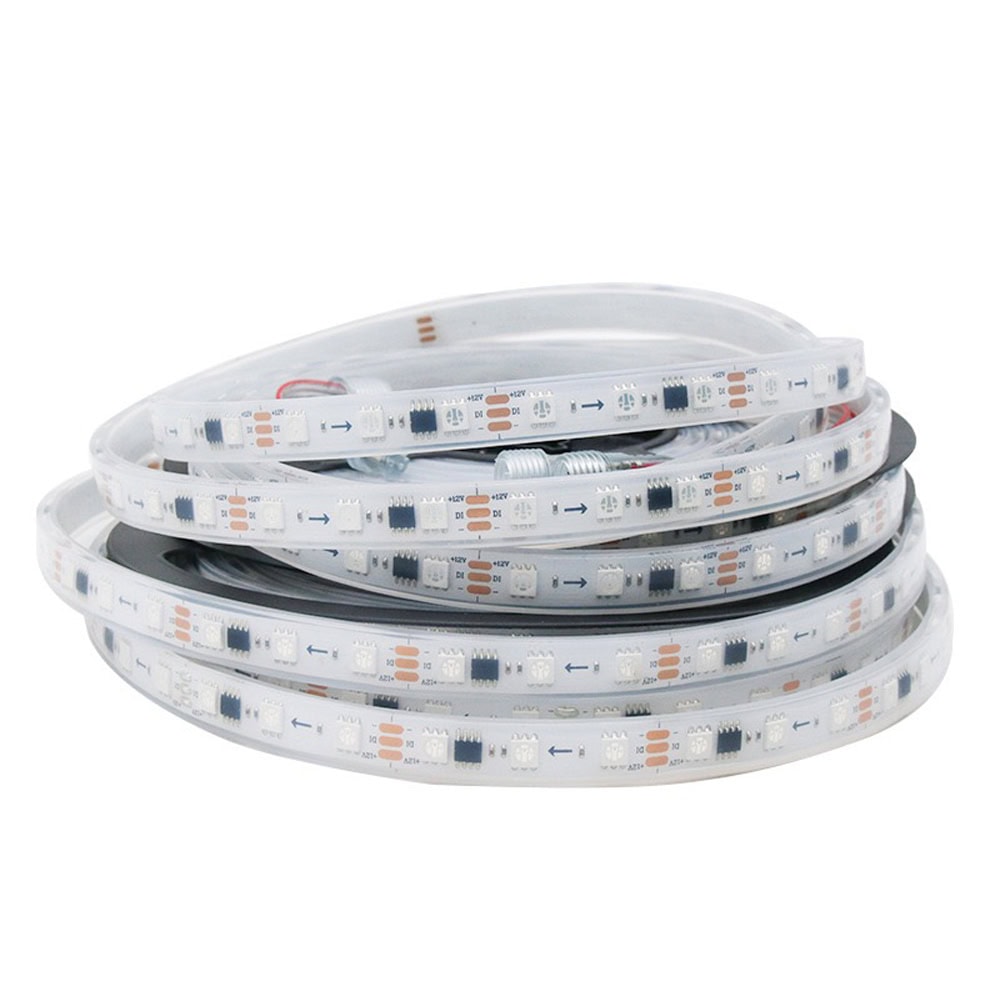

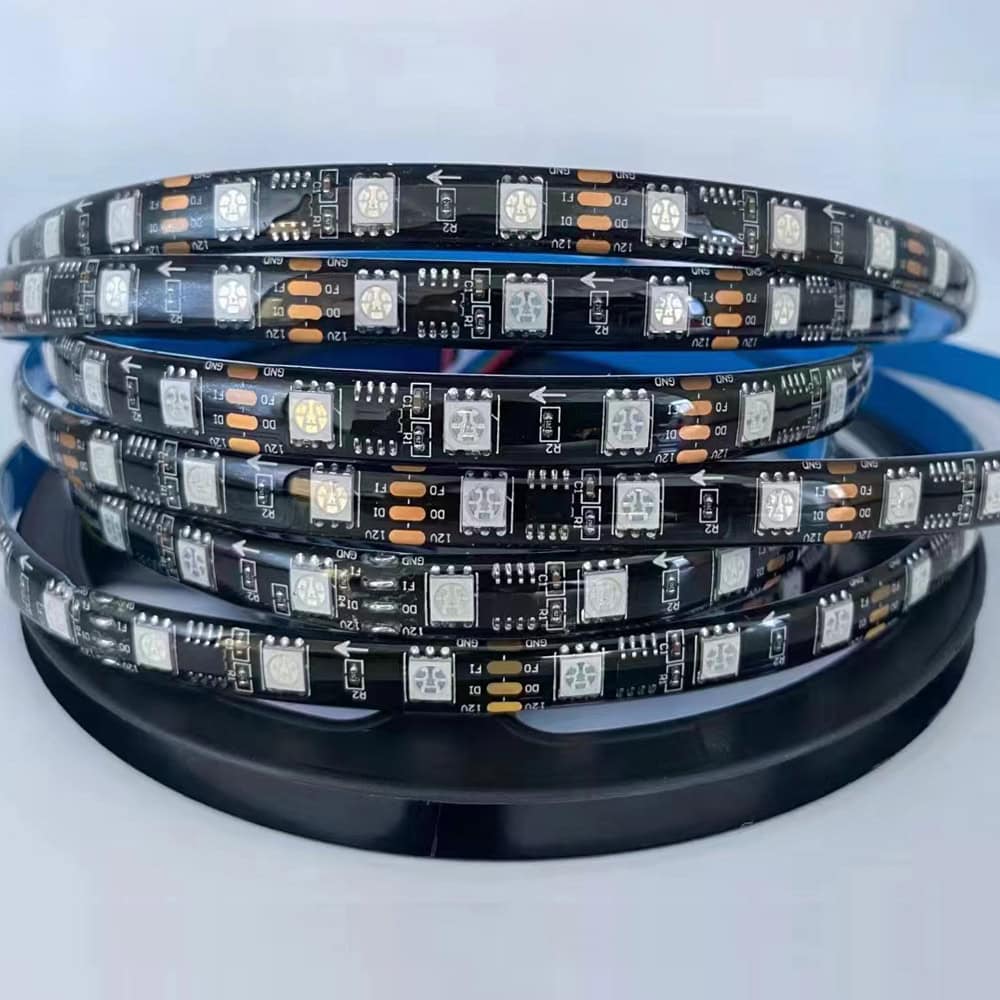

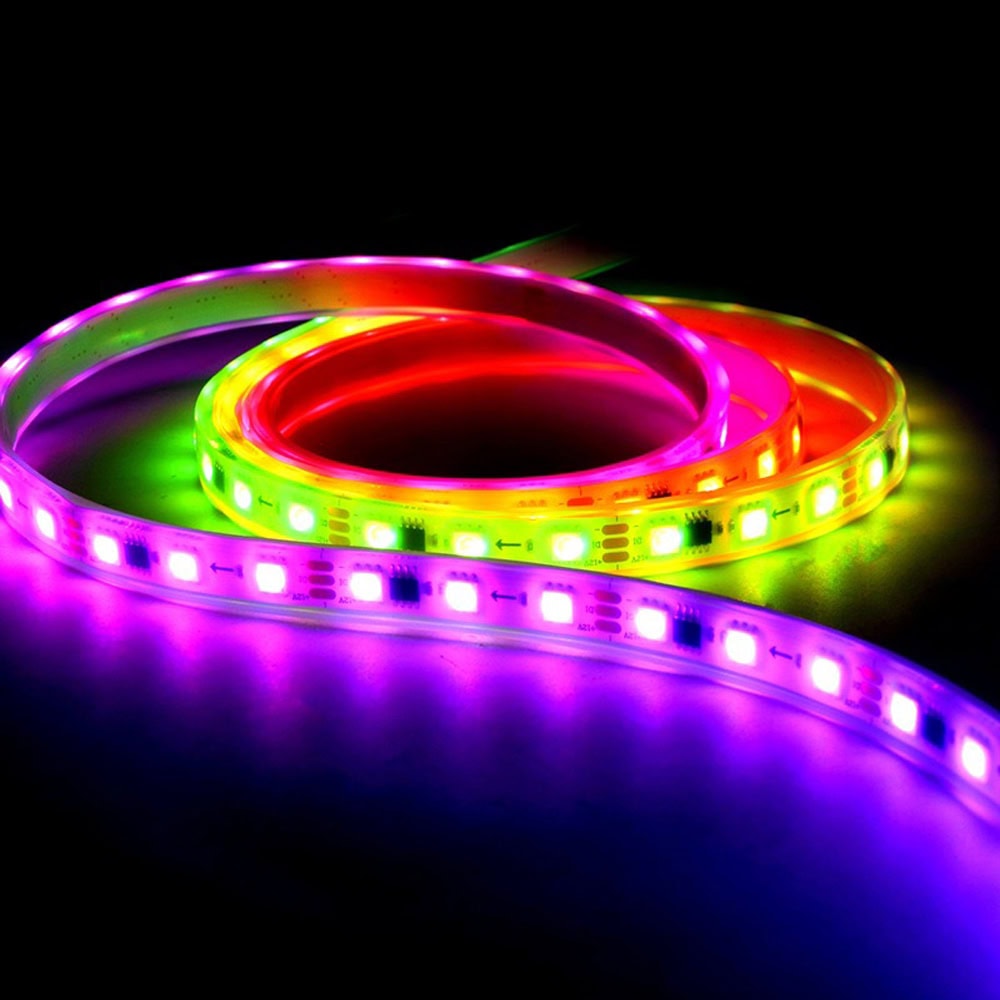

High Quality Individual Addressable Smart RGB LED Strips
Lamp bead model:2835RGB/3535RGB/4020RGB/5050 RGB
Number of lamp beads:30/60/72/84/96/120/240Leds
Input Voltage(V):DC12V/24V (optional)
Operating temperature:-25℃ ↔ 80℃
Emitting Color:RGB Colorful
Lifespan (hours):50000H
IP Grade:IP20-IP68(depend on your need)
Packaging:5M/ roll (customizable)
High Quality Individual Addressable Smart RGB LED Strips

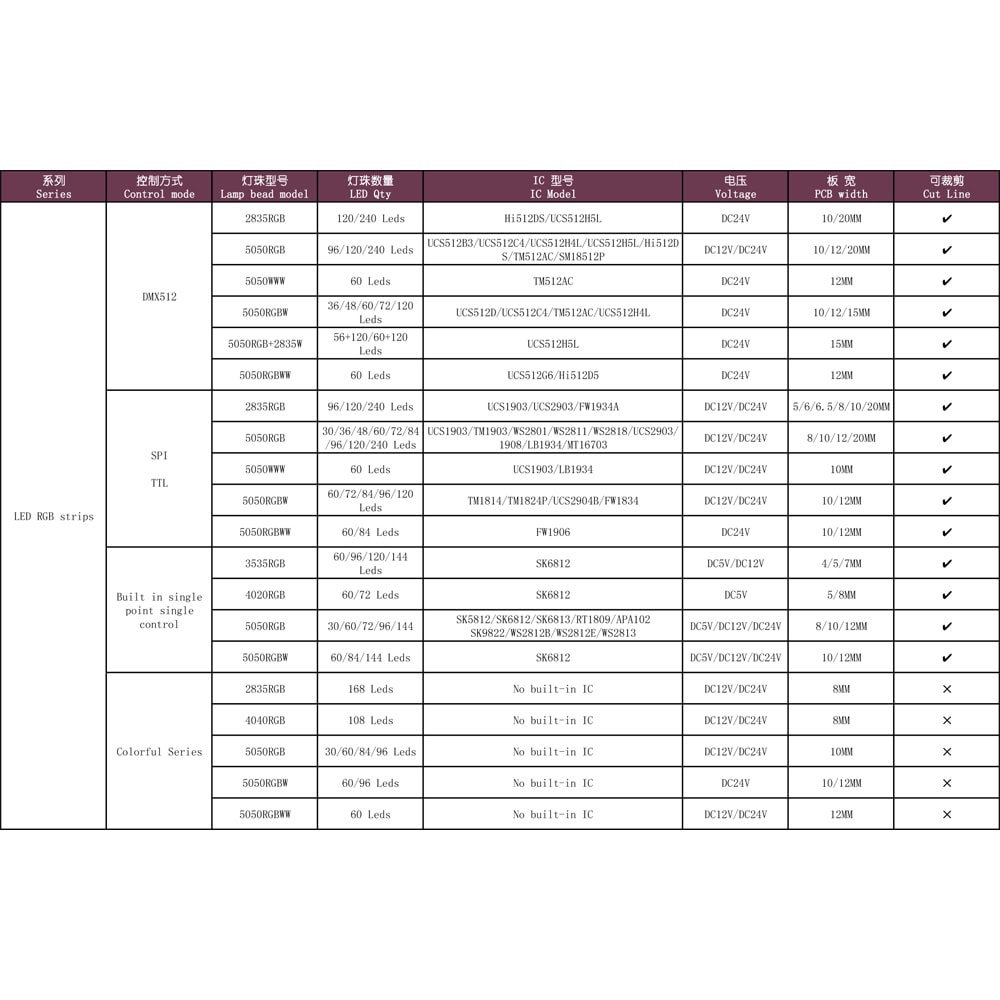

| Series | Control mode | Lamp bead model | LED Qty | IC Model | Voltage | PCB width | Cut Line |
| LED RGB strips | DMX512 | 2835RGB | 120/240 Leds | Hi512DS/UCS512H5L | DC24V | 10/20MM | ✔ |
| 5050RGB | 96/120/240 Leds | UCS512B3/UCS512C4/UCS512H4L/UCS512H5L/Hi512DS/TM512AC/SM18512P | DC12V/DC24V | 10/12/20MM | ✔ | ||
| 5050WWW | 60 Leds | TM512AC | DC24V | 12MM | ✔ | ||
| 5050RGBW | 36/48/60/72/120 Leds | UCS512D/UCS512C4/TM512AC/UCS512H4L | DC24V | 10/12/15MM | ✔ | ||
| 5050RGB+2835W | 56+120/60+120 Leds | UCS512H5L | DC24V | 15MM | ✔ | ||
| 5050RGBWW | 60 Leds | UCS512G6/Hi512D5 | DC24V | 12MM | ✔ | ||
| SPI
TTL |
2835RGB | 96/120/240 Leds | UCS1903/UCS2903/FW1934A | DC12V/DC24V | 5/6/6.5/8/10/20MM | ✔ | |
| 5050RGB | 30/36/48/60/72/84/96/120/240 Leds | UCS1903/TM1903/WS2801/WS2811/WS2818/UCS2903/1908/LB1934/MT16703 | DC12V/DC24V | 8/10/12/20MM | ✔ | ||
| 5050WWW | 60 Leds | UCS1903/LB1934 | DC12V/DC24V | 10MM | ✔ | ||
| 5050RGBW | 60/72/84/96/120 Leds | TM1814/TM1824P/UCS2904B/FW1834 | DC12V/DC24V | 10/12MM | ✔ | ||
| 5050RGBWW | 60/84 Leds | FW1906 | DC24V | 10/12MM | ✔ | ||
| Built in single point single control | 3535RGB | 60/96/120/144 Leds | SK6812 | DC5V/DC12V | 4/5/7MM | ✔ | |
| 4020RGB | 60/72 Leds | SK6812 | DC5V | 5/8MM | ✔ | ||
| 5050RGB | 30/60/72/96/144 | SK5812/SK6812/SK6813/RT1809/APA102 SK9822/WS2812B/WS2812E/WS2813 | DC5V/DC12V/DC24V | 8/10/12MM | ✔ | ||
| 5050RGBW | 60/84/144 Leds | SK6812 | DC5V/DC12V/DC24V | 10/12MM | ✔ | ||
| Colorful Series | 2835RGB | 168 Leds | No built-in IC | DC12V/DC24V | 8MM | ✕ | |
| 4040RGB | 108 Leds | No built-in IC | DC12V/DC24V | 8MM | ✕ | ||
| 5050RGB | 30/60/84/96 Leds | No built-in IC | DC12V/DC24V | 10MM | ✕ | ||
| 5050RGBW | 60/96 Leds | No built-in IC | DC24V | 10/12MM | ✕ | ||
| 5050RGBWW | 60 Leds | No built-in IC | DC12V/DC24V | 12MM | ✕ |
